General Pump has been the world leader in pressure washer triplex plunger pump development since 1982. While known as the leader in triplex plunger pumps for the pressure cleaning industry, now they have expanded into Industrial pumps rated up to 112 gallons per minute or pressures up to 21,750 PSI to serve Vehicle Wash as well as many Industrial Applications including Sewer Jetting, Oil and Gas Industries, Mining Industries, Mobile Pressure Wash, Food Industries and Exterior Building Maintenance. Always striving to serve our customers better Water Cannon now offers the complete line of General Pumps and Industrial General Pumps at discounted prices. Water Cannon offers online discounts for volume and you can save up to 20% additional with an added bonus of free freight. General Pump’s motto; "We Will Find A Way”, now with Water Cannon’s help at discounted prices. Materials:

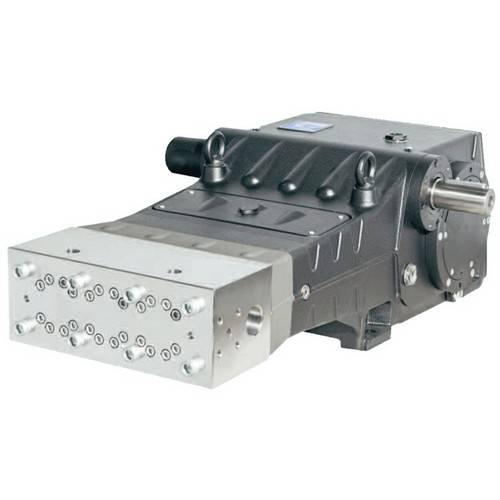

Emperor Pumps SK Series Industrial Pumps SK2015 SK2017 SK2215 SK2217 SK2415 SK2417 SK2615 SK2617
Features:
• Triplex Plunger Pump, available in 6 flows
• Double pressure packings
• Pressure packing integrated cooling system
• Horizontally fitted in-line valves
• Splash lubrication
• Hydraulic drive available
• Incorporated gear box available in two ratios 1500 RPM=2.950:1 and 1900 RPM=3.389:1
• High Resistance Stainless Steel Manifold
• Solid Ceramic Plungers
• Forged Steel Connecting Rods
• Stainless Steel Valves
• Tempered Steel Alloy Crankshaft
• Cast Iron Crankcase
• Double Rim Roller Bearings
• Proprietary Seal Technology
Common Specifications:
• Maximum Inlet Pressure: 100 PSI
• Minimum Inlet Pressure: 75 PSI
• Maximum Fluid Temperature: 86° F
• Inlet Port Thread: 1-1/2" BSP-F
• Discharge Port Thread: 14 mm Flange
• Shaft Diameter: 1.969"/50 mm
• Stroke: 3.546"/90 mm
• Pump Dimensions: 42" x 26.4" x 13.7"
• Crankcase Oil Capacity: 473.4 oz. (14 liters)
• Shipping Weight: 840 lbs./381 kg
Helpful tips to keep your pressure washer pump operating at peak performance
Warning California Proposition 65
Detectable amount of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm may be found in pressure washing equipment, accessories and exhaust. For More Information Visit www.p65warnings.ca.gov
Manufacturer: | General Pump |
SKU: | SK2015 |
PSI: | 21750 |
GPM: | 11.4 |
Drive Type: | 50mm Solid Shaft |
Brand: | GENERAL PUMP |
RPM: | 1500 |
Plumbing Type: | Not Included |
Shaft size: | 55 MM |
