Emperor Pumps-KE Series-1885-4350 PSI

By : General Pump

SKU : KE20A
  • Quick Specs
  • PSI: 4350
  • GPM: 8
Click to Select:
Regular Price: $0.00
In Stock
Call to Order 800-333-9274

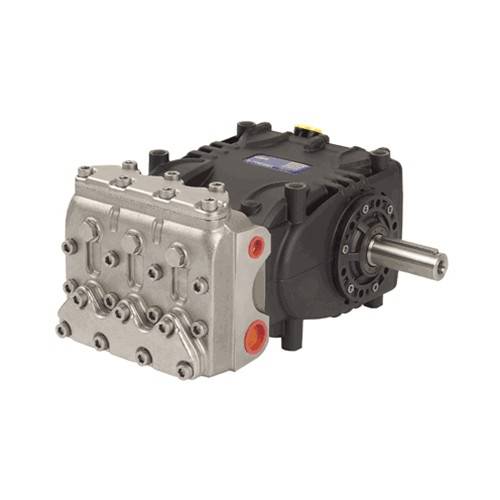

Emperor Pumps KE Series Industrial Pumps KE20A KE22A KE24A KE28A KE30A

Features:
• A “New Generation" Pump
• Triplex Plunger Pump, available in 5 flows
• Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
• Low-high pressure packing design with integrated cooling system
• High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
• Splash lubrication
• SAE-B hydraulic drive bell housing and flexible couplers available

Materials:
• High resistance light alloy die cast aluminum crankcase
• 420 Stainless steel manifold, nickel treated
• Taper roller bearings
• Special antifriction, forged, light alloy connecting rods
• Forged alloy steel crankshaft, hardened, tempered and nitrited
• Cast iron piston guide, nickel treated
• Solid ceramic plungers
• Stainless steel valves
• Pumps are also available with 316 SS packing components. These models use prefix “KEN"

Common Specifications:
• Maximum Inlet Pressure: 45 PSI
• Maximum Fluid Temperature: *140 Degree F
• Inlet Port Thread: 1" NPT-F
• Discharge Port Thread: 1/2" NPT-F
• Shaft Diameter: 1.181"/30 mm
• Stroke: 0.9055"/23 mm
• Pump Dimensions: 15.2" x 13.4" x 7.7"
• Crankcase Oil Capacity: 67.63 oz. (2 liters)
• 1450 RPM
• Shipping Weight: 88 lbs./40 kg



Helpful tips to keep your pressure washer pump operating at peak performance

California Residents - Click here for Prop 65 WARNINGS
Description

Emperor Pumps KE Series Industrial Pumps KE20A KE22A KE24A KE28A KE30A

Features:
• A œNew Generation" Pump
• Triplex Plunger Pump, available in 5 flows
• Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
• Low-high pressure packing design with integrated cooling system
• High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
• Splash lubrication
• SAE-B hydraulic drive bell housing and flexible couplers available

Materials:
• High resistance light alloy die cast aluminum crankcase
• 420 Stainless steel manifold, nickel treated
• Taper roller bearings
• Special antifriction, forged, light alloy connecting rods
• Forged alloy steel crankshaft, hardened, tempered and nitrited
• Cast iron piston guide, nickel treated
• Solid ceramic plungers
• Stainless steel valves
• Pumps are also available with 316 SS packing components. These models use prefix œKEN

Common Specifications:
• Maximum Inlet Pressure: 45 PSI
• Maximum Fluid Temperature: *140 ° F
• Inlet Port Thread: 1" NPT-F
• Discharge Port Thread: 1/2" NPT-F
• Shaft Diameter: 1.181"/30 mm
• Stroke: 0.9055"/23 mm
• Pump Dimensions: 15.2" x 13.4" x 7.7"
• Crankcase Oil Capacity: 67.63 oz. (2 liters)
• 1450 RPM
• Shipping Weight: 88 lbs./40 kg



Helpful tips to keep your pressure washer pump operating at peak performance

Warning California Proposition 65
Detectable amount of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm may be found in pressure washing equipment, accessories and exhaust. For More Information Visit www.p65warnings.ca.gov

Specifications

Manufacturer: General Pump
SKU: KE20A
PSI: 4350
GPM: 8
Brand: GENERAL PUMP
RPM: 1450
Shaft size: 30 MM
