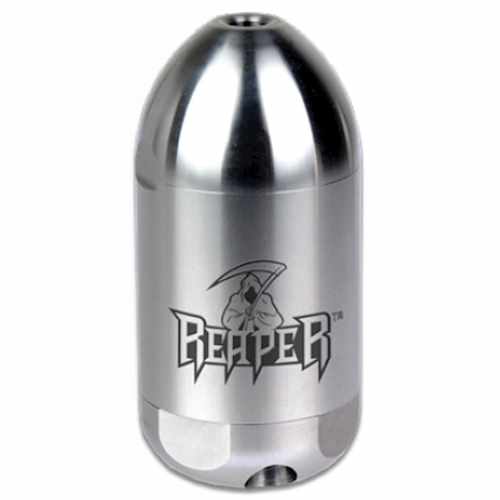

Reaper Jetting Nozzle 3/8 Inch - Rs 624 Nozzle Size 12

By : Hydra-Flex

SKU : 1003031-120
  • Quick Specs
  • PSI: 4000
Regular Price: $760.00
In Stock
Quantity:
Description

REAPER JETTING NOZZLE - 3/8 INCH INLET, 24-DEGREE - NOZZLE SIZE 12

The Reaper's rotating front jet is a 0-degree, straight water stream that blasts at up to 4000 PSI while rotating at an optimal speed to form a 24 or 30-degree cone of coverage. Optimized stream quality results in greater impingement, allowing you to use one tool for various applications (cutting, cleaning, removal, etc.). Reaper's four rear jets create a 20-degree angle for maximum thrusting and pulling power.

Constructed with stainless steel housing and tungsten carbide wear surfaces.

The 3/8" nozzle inlet and 24-degree cone of coverage is ideal for 3" to 6" pipes.

SPECIFICATIONS

  • Minimum Inlet Pressure: 1500 PSI (103 Bar)
  • Maximum Inlet Pressure: 4000 PSI (276 Bar)
  • Maximum Water Temperature: 180°F (+82°C)
  • Housing Material: Stainless Steel
  • Nozzle Tip & Seat Material: Tungsten Carbide
  • Inlet Connection Thread: 3/8" FNPT
  • Front (Rotating) Spray Angle: 24-Degrees
  • Rear (Static) Spray Angle: 20-Degrees

FLOW RATE CHART

  • 1500 PSI: 7.3GPM
  • 2000 PSI: 8.5 GPM
  • 2500 PSI: 9.5 GPM
  • 3000 PSI: 10.4 GPM
  • 3500 PSI: 11.2 GPM
  • 4000 PSI: 12.0 GPM
California Residents - Click here for Prop 65 WARNINGS

Specifications

Manufacturer: Hydra-Flex
SKU: 1003031-120
PSI: 4000
Brand: REAPER
Discharge Port Size: 12.0 ORIFICE
Material: Rs
