3.0GPM-3500PSI - RSV3G34-PKG

Annovi Reverberi Pump has been the world leader in pressure washer triplex plunger pump development since 1958. While known as the leader in triplex plunger pumps for the pressure cleaning industry Vehicle Wash as well as many Industrial Applications including Sewer Jetting, Oil and Gas Industries, Hydro Excavating, Mining Industries, Mobile Pressure Wash, Food Industries and Exterior Building Maintenance.

Always striving to serve our customers better Water Cannon now offers the complete line of AR Pumps and Industrial AR Pumps at discounted prices. Water Cannon offers online discounts for volume and you can save up to 20% additional with an added bonus of free freight.

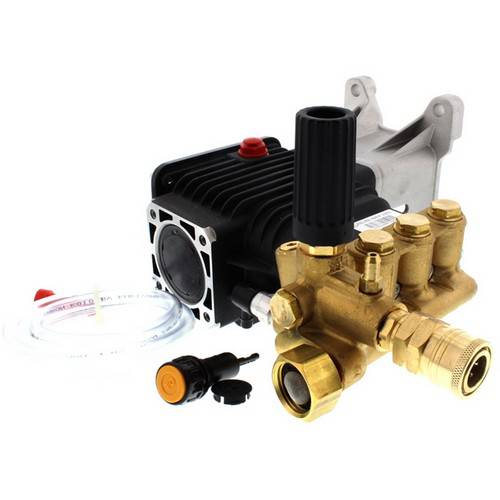

This version of the RSV series triplex plunger pump features a built-in unloader and downstream injector on the left side of the manifold. It sports a 1" hollow shaft and is flanged for direct coupling to gasoline engines (SAE J609B). It also has large, lightweight connecting rods, new long life low-and high-pressure seals, roller bearings and a forged brass manifold with a 5 year warranty.

For a low cost and low maintenance 4000 PSI pressure washer pump search for RSV4G40-PKG at replacementpumps.com or call 1-800-333-9274.

RSV3G32-933 SPECIFICATIONS
• Max Flow Rate: 3.0GPM
• Max Pressure: 3500PSI
• Bore Diameter: 15mm
• Shaft: 1 Inch with Gas Engine Flange
• Oil Capacity: 16 Oz.
• Maximum Fluid Temperature: 140 Deg Fahrenheit

RSV4G40-933 SPECIFICATIONS
• Max Flow Rate: 4.0GPM
• Max Pressure: 4000PSI
• Bore Diameter: 15mm
• Shaft: 1 Inch with Gas Engine Flange
• Oil Capacity: 16 Oz.
• Maximum Fluid Temperature: 140 Deg Fahrenheit

MANIFOLD
New high efficiency design concept. (Patented). Forged brass for strength and no porposity for long life and higher hydrostatic pressures.

BOLTS
Eight 6mm grade 8.8.

PLUNGERS
Ceramic coated stainless steel.

CRANKCASE
Precision die-cast, large cooling fins and anodized for maximum heat dissipation.

BEARINGS
Oversized for maximum life and load disbursement, needle bearing on the drive side and ball on the non-drive side. Each bearing is held in position on the crankshaft and crankcase by snap rings. This assures positive alignment and centering of the connecting rods and crankshaft in relation to the crankcase, it also eliminates the crankshaft from floating.

VALVES, SEATS, AND SPRINGS
Stainless steel with specially designed Ultra Form cages to provide long life and positive seating.

SEALS AND V-PACKINGS
"V" style (D-1) Buna-N (cotton duct weave base) strong and tightens under load.

OIL SEALS
All are constructed of Buna-N rubber.

PLUNGER RODS
Stainless steel construction for strength (no plating to scrape off), o-ring plunger sealing system.

CONNECTING RODS
One piece special alloy aluminum and bronze based, oversized for maximum strength, load disbursement, and life. Heavy pin area construction, for added load strength.

California Residents - Click here for Prop 65 WARNINGS

Manufacturer:	Annovi Reverberi
SKU:	RSV3G34-PKG
PSI:	3000
GPM:	3
Drive Type:	1 Inch Hollow Shaft
Brand:	AR
RPM:	3400
Plumbing Type:	Built-In Integrated
Pump:	RSV3G34
Variant MPN:	RSV3G34-PKG
