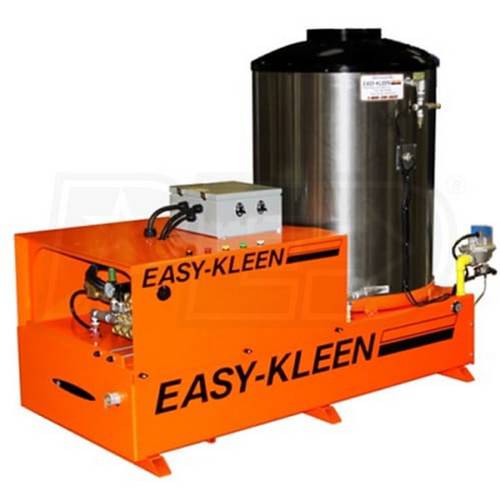

EZN3004-1-A-Easy Kleen-Buffalo Series-3000PSI

Electrical cord, plug and GFCI are not included and can be purchased locally from an electrical supply house, hardware or big box store. Please consult a qualified local electrician.

FEATURES

• Buffalo Series - Industrial Natural Gas
• 4 GPM at 3000 PSI
• 7.5 HP TEFC 1.15 Service Factor Electric Motor
• Single Phase
• 220 Voltage
• Auto Start Stop
• General Pump
• Schedule 80 Heating Coil
• Belt Drive
• Powder Coated Stationary Frame with Tip ahead Shroud and Built in Belt Guard for Ease of Maintenance. Longest lasting machines on the market.

Ideal for in-plant, service shop and wash bay systems. These are the most efficient, long lasting machines on the market. Simple In design for ease of maintenance and usability.

HOTTER, FASTER & MORE EFFICIENT
Our customers continuously comment on the heat and speed of cleaning with these machines. Enjoy the power of a 150-degree F temperature rise.

• Heavy Duty Triplex Plunger Belt Drive General Pump
• Inline Serviceable Stainless-Steel Mesh Water Filter
• Oil Bath Crank Case with dipstick and sight gauge
• Stainless Unitized Valves
• Forged Brass Manifold
• Thermo Pump Protector engages at 140 Degrees F
• Adjustable Pressure Regulator from 150psi to max
• Fully Welded Powder Coated Steel Frame

Heating Coil

• Elliptically wound cold process of stretched reduced fully body normalized ASTM A53/APIPSL schedule 80 or optional 160 pipe is structurally braced to minimize pipe wear.
• The coil is sealed by a ceramic blanket and enclosed in a stainless-steel housing for heating efficiency.
• These coils have been specially designed to be paired with the burners maximum heating and fuel efficiency.
• The coils are securely mounted to the frames to reduce vibration and enhance ease of maintenance.
• Wet/dry steam equipment.
• option available. (Schedule 160 pipe option up to 11,500 psi coils)

Wayne Burners

• Quality North American made oil fired burners with adjustable thermostats are used due to their efficiency and durability. Safety features include:
• Flow switch
• Pressure switch
• Rupture disc
• High limit
• Adjustable thermostat.

Units are equipped with quick-kleen burner apparatuses. Burners jets have 6 oxygen orifice inlets to ensure maximum burn and minimize CO results.

• Stainless Steel Housing
• Thermostat Controlled Optional
• BTU 390,000

Electric Motors - Auto Stop Start
Totally enclosed fan cooled full frame 1750 RPM electric motors. Single phase equipped with a 1.15 service factor, 3-phase equipped with a 1.25 service factor, both are high efficiency. Voted the #1 motor at international trade shows in 2014.

Frame
Rugged 11 gauge and 1 /4" bent one-piece plate steel frame is fully welded with a powder coat finish. Frames are equipped with 11-gauge steel shrouds with integrated belt guards for maximum serviceability.

Includes

• Pressure Regulator
• 36 Inch Trigger Gun and Wand Assembly with Quick Coupler System
• 0/15/25/40 Nozzles - 50 Feet of High-Pressure Hose
• Downstream Chemical/Soap Injector

Options & Accessories

• Second Pumping Systems
• Hose Reel Soap Solenoid & Switch
• Rotary Nozzle Remote Station
• Draft Hoods Steam Kit
• Wheel Kits Dual Gun Kit
• Stainless Steel Coils
• VFD
• Leg Stands
• Remote Control
• PLC Control * Propane Fired (EZP)

Innovative Features
Quick Kleen Burner System
Each model in the Buffalo Series is equipped with a quick-kleen burner system. Your burner orifices should be cleaned every 6 months and this system makes it easy to do so. You simply disconnect the wiring harness, remove 2 bolts and your burner will slide out with ease. Once you have cleaned your burner the apparatus will easily slide back into place with a little push.Quick and Easy Maintenance.

Quick Adjust Air Flow Vents
The Quick Adjust Air Flow vents allow you to adjust the amount of air that is flowing into the burner chamber. This adjustment allows you to maximize the efficiency of the burner by fine tuning the CO levels to optimize emission levels at different altitudes. This allows you to adjust your air flow quickly and simply.

Tip Ahead Shroud with Integrated Belt Guard
The tip ahead shroud allows you to easily access all of your motor and pump components in seconds. You simply loosen the T-Nuts on both sides of the unit and pull the shroud forward. The belt guard is integrated into the design of the shroud for maximum serviceability and safety. This ensures that your belt and pulley system will never be exposed.

Nema 4 Water Tight Control Panel
Electrical Nema 4 water tight control panels complete with hinged covers are utilized for easy service access. No unnecessary electronics are used when designing these units, making service and diagnostics simple.

Owners Manual - Click Here to View or Download it
Warning California Proposition 65
Detectable amount of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm may be found in pressure washing equipment, accessories and exhaust. For More Information Visit www.p65warnings.ca.gov

Manufacturer:	Easy Kleen
SKU:	EZN3004-1-A
PSI:	3000
GPM:	4
Drive Type:	Belt Drive
Powered By:	Electric
Cold or Hot Water:	Hot Water
Engine:	7.5HP Electric Motor
Variant MPN:	EZN3004-1-A
