5.8GPM-7250PSI-SHP Series-Annovi Reverberi

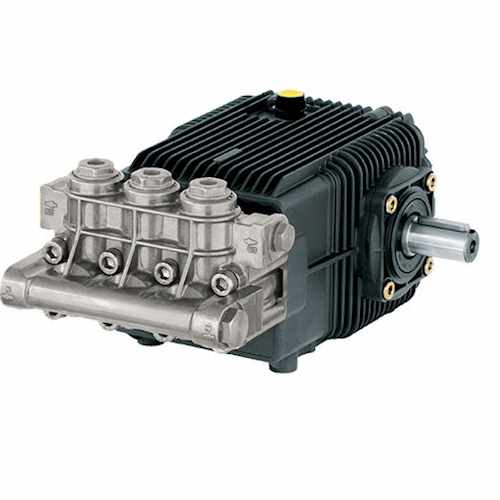

The Annovi Reverberi SHP22.50HN, N version 26 mm solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a nickel-plated brass pump head suitable for a wide range of conditions. The SHP22.50HN can produce up to 7250 Max PSI, 5.8 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the SHP22.50HN weighs in at 29 lbs and delivers the performance you demand.

Weight 29 lbs
Pump Orientation Horizontal
Pump Head Material nickel plated brass
Connecting Rods aluminum
Max GPM 5.8
Max L/Min 22
Max PSI 7250
Max Bar 500
Power EBHP 28.9
Bore Dia mm 18
Stroke mm 21
CSID Stamp 7
Inlet (in) 1/2" F
Outlet (in) 3/8" F
Max Temp 140° F
Oil Capacity (oz.) 32
RPM 1450
Shaft Size 26 mm
Shaft Version Neutral Shaft
Shaft Type Solid
Market Industrial
Pump Type Triplex Plunger



AR SHP22.50N AR TRIPLEX PLUNGER PUMPS 5.8GPM @ 7250PSI - HEAD & VALVE CAPS ARE NICKEL PLATED

Helpful tips to keep your pressure washer pump operating at peak performance

California Residents - Click here for Prop 65 WARNINGS

Manufacturer:	Annovi Reverberi
SKU:	SHP22.50HN
PSI:	7250
GPM:	5.8
Drive Type:	24mm Solid Shaft
Brand:	AR
RPM:	1450
Plumbing Type:	Not Included
Shaft size:	24 MM
