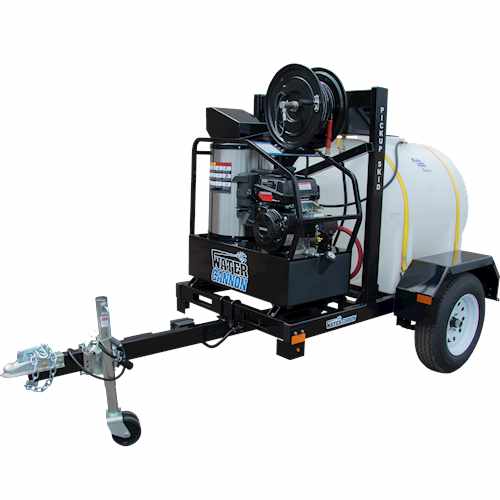

Commercial Hot Water Dot Trailer Pressure Washer Package

Get the job done with our powerful Commercial Hot Water Gas Pressure Washer. It's equipped with a 14 HP electric start Kohler engine, delivering 3.5 GPM at 4000 PSI using a General Pump. Plus, it features a 12-volt oil-fired burner with 350,000 BTUs for efficient heating. And the best part? It comes with a DOT-approved trailer package, complete with a 3500lb single axle, fenders, tongue with lights, hose reel, and a 100 ft hot water hose for ultimate convenience.



Specs:

FEATURES

Commercial Hot Water

4.0 GPM at 4000 PSI

Kohler 440cc Gas Engine with convenient oil drain

Key Start with a back-up Recoil Start battery not included

12 Volt Burner does not require an electrical power source

Schedule 80 Heating Coil

Powder Coated Portable Frame with 13 Inch Pneumatic Wheels Attached with Lock Nuts.

Dependable long lasting machines built for a multitude of applications. Heats water faster & hotter than competitors.

Our most popular and versatile units. Utilized by a multitude of businesses for a wide variety of cleaning needs. From truck wash application to daily construction and farm use. Our customers continuously comment on the heat and speed of cleaning with these machines. Enjoy the power of a 132 degree F temperature rise.

General Triplex Plunger Pump

Inline Serviceable Stainless Steel Mesh Water Filter

Oil Bath Crank Case with dipstick and sight gauge

Stainless Unitized Valves

Forged Brass Manifold

Thermo Pump Protector engages at 140 Degrees F

Adjustable Pressure Regulator from 150psi to max

Fully Welded Powder Coated Steel Frame

Heating Coil

Elliptically wound cold process of stretched reduced fully body normalized ASTM A53/APIPSL schedule 80 or optional 160 pipe is structurally braced to minimize pipe wear.

The coil is sealed by a ceramic blanket and enclosed in a stainless steel housing for heating efficiency.

These coils have been specially designed to be paired with the burners maximum heating and fuel efficiency.

The coils are securely mounted to the frames to reduce vibration and enhance ease of maintenance.

Option available. (Schedule 160 pipe option up to 11,500 psi coils)

Wayne Burners

Quality North American made oil fired burners with adjustable thermostats are used due to their efficiency and durability. Safety features include: flow switch, pressure switch, rupture disc, high limit and adjustable thermostat.

Stainless Steel Housing

Thermostat Controlled Optional

BTU 350,000

Frame

All Welded

Powder Coated

12 Gauge Bent Steel Roll Cage

Lifting Bar

3/4 Inch Threaded Axles Welded to the Frame

13 Inch Pneumatic Wheels Attached with Lock Nuts

10 Gallon Poly Fuel Tank

Hose Reel Mounting Plate

Stationary Skid Frame also Available

Includes

Pressure Regulator

36 Inch Trigger Gun and Wand Assembly with Quick Coupler System

0/15/25/40 Nozzles - 50 Feet of High Pressure Hose

Downstream Chemical/Soap Injector

Options & Accessories

Rotary Nozzle

Drain Cleaning/Jetter Kit

Stationary Frame

Rental Frame Option with Grab Bar Surround For Easy loading and Total Protection

Battery NOT Included

Manufacturer:	Water Cannon
SKU:	18KTR16
PSI:	4000
GPM:	4.0
