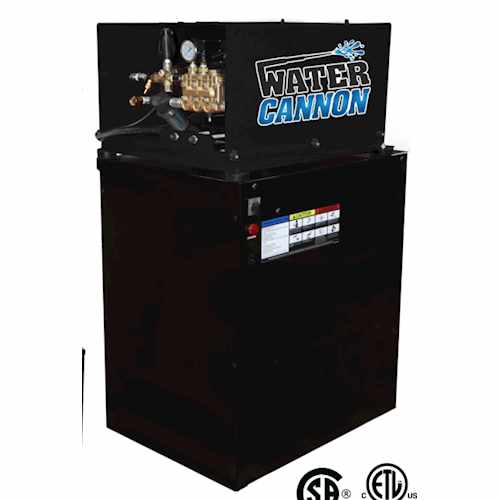

Industrial Hot Water Electric Heated 20Hp 460V 3Ph 10GPM 3000PSI 96Kw

Utilized by: Mines, Mills, Refineries, Service Shops, and Food Processing Plants. Can be installed in virtually any location with no exhaust venting required.
* Units with Double Coils (Large Heating Capacity)

Pumps
• Industrial Heavy Duty Triplex Plunger Pumps
• Oil Bath Crankcase
• Stainless Steel Valves
• Brass Manifold
• Thermo Pump Protector
• Belt or Flange & Coupling Driven Electric Motors
• 1750 RPM
• TEFC
• Full Frame
• 1.25 Service Factors
• Thermal Overload Protection
• Continuous Duty
• Rated Premium Efficiency

Heater
• 316 Stainless Steel Heat Exchanger Coil
• Designed for continuous use
• Large 70 Gallon (Single Coil Models) & 120 Gallon (Dual Coil Models) Heater Storage Tanks
• Allows for Continuous Recovery even when Trigger Gun(s) not in use
• No Open Flame
• Can be Installed in Virtually any Location
• Compact Footprint
• Standard and Explosion Proof Models
• No Venting Required
• Heater Exchanger
• Coils do not Require Decalcification
• Require less KW than Input Direct-immersion
• Type Electrically Heated Models
• Low Water Heat Exchanger Solution Cut-Off Switch
• Adjustable Temperature Controller
• Pin-Type Calrod Heating Elements With Incoloy Sleeves Frame
• All Welded - Powder Coated
• 11 Gauge Bent Steel Tip Ahead Shroud Designed To Expose All Components for Ease of Service Includes
• Liquid Filled Pressure Gauge
• Adjustable Pressure Regulator
• 48” Gun and Wand Assembly with Quick Coupler System
• 0°/15°/25° /40° Nozzles
• 50 Feet of High Pressure Wash Hoses (8 - 10 GPM Units Include 2 Gun & Wand Assemblies & 50 Feet of High Pressure Hose)

Options & Accessories
• Full Range of Portable Frames
• Stainless Steel Covers and Heater Skins
• 50HZ Models
• ASME B31.1
• 2004 (Power Piping) Code
• Compliant Models Available And Explosion Proof Units
• VFD
• PLC Control
• Remote Control

Specs:

10 GPM
3000 PSI
96 KW Heater Input
20 HP Motor
460V
Dimensions L" x W" x H": 48" x 54" x 36"

Manufacturer:	Water Cannon
SKU:	26M49-460
PSI:	3000
GPM:	10
