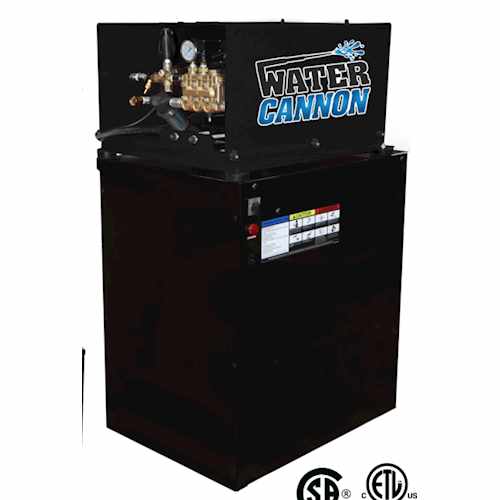

Industrial Hot Water Electric Heated 3Hp 208V3Ph,4GPM 1200PSI,24Kw

Utilized by: Mines, Mills, Refineries, Service Shops, and Food Processing Plants. Can be installed in virtually any location with no exhaust venting required.
* Units with Double Coils (Large Heating Capacity)



Pumps
• Industrial Heavy Duty Triplex Plunger Pumps

• Oil Bath Crankcase
• Stainless Steel Valves

• Brass Manifold

• Thermo Pump Protector
• Belt or Flange & Coupling Driven

Electric Motors
• 1750 RPM

• TEFC

• Full Frame

• 1.25 Service Factors
• Thermo Overload Protection

• Continuous Duty
• Rated Premium Efficiency

Heater
• 316 Stainless Steel Heat Exchanger Coil

• Designed for continuous use
• Large 70 Gallon (Single Coil Models) & 120 Gallon (Dual Coil Models) Heater Storage Tanks

• Allows for Continuous Recovery even when Trigger Gun(s) not in use

• No Open Flame

• Can be Installed in Virtually any Location

• Compact Foot Print

• Standard and Explosion Proof Models

• No Venting Required

• Heater Exchanger

• Coils do not Require Decalcification

• Require less KW than Input Direct-immersion
• Type Electrically Heated Models

• Low Water Heat Exchanger Solution Cut-Off Switch

• Adjustable Temperature Controller

• Pin-Type Calrod Heating Elements With Incoloy Sleeves

Frame
• All Welded - Powder Coated

• 11 Gauge Bent Steel Tip Ahead Shroud Designed To Expose All Components for Ease of Service

Includes
• Liquid Filled Pressure Gauge

• Adjustable Pressure Regulator
• 48” Gun and Wand Assembly with Quick Coupler System

• 0°/15°/25°/40° Nozzles

• 50 Feet of High Pressure Wash Hoses (8 - 10 GPM Units Include 2 Gun & Wand Assemblies & 50 Feet of High Pressure Hose)

Options & Accessories
• Full Range of Portable Frames

• Stainless Steel Covers and Heater Skins
• 50HZ Models

• ASME B31.1

• 2004 (Power Piping) Code

• Compliant Models Available And Explosion Proof Units

• VFD

• PLC Control
• Remote Control



Specs:

4 GPM

1200 PSI

24 KW Heater Input

3 HP Motor

208V

Dimensions L" x W" x H": 32" x 28" x 52"

Manufacturer:	Water Cannon
SKU:	26M02-208
PSI:	1200
GPM:	4
