INDUSTRIALHOT WATER 8GPM-3600PSI,20HP ELECTRIC 208VT-3PH-800,000BTU

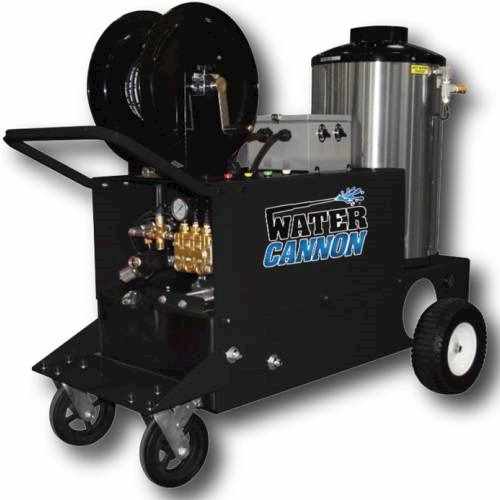

Note: Model Shown is 25M15 with Optional Hose Reel, Auto Stop/Start and Wheel Kit



Pumps

• Industrial Duty Triplex Plunger Pumps • Oil Bath Crankcase • Stainless Steel Valves • Brass Manifold • Thermo Pump Protector



Electric Motors

• 1750 RPM • TEFC • Full Frame • 1.15 Service Factor • Thermal Overload  Protection • Continuous Duty • 3 Phase (Premium Efficiency) • 1.25 Service Factor



Electrical Control Panel

• Nema 4 • Water Tight • Easy Access • Heavy Duty On/Off Cam Switch  Or Optional Auto Stop/Start With Time Delay



Heating Coil

• Schedule 80 or 160 Pipe • Elliptically Wound & Stretched • No Seam Welds • Structurally Braced To Reduce Vibration & Pipe Wear • Sealed with Ceramic Blanket • Stainless Steel Housing • Thermostat Controlled



Burners

• Oil Fired • Adjustable Thermostat • On/Off Switch • Cleanable Fuel  Filters • North American Made • Dependable • Serviceable



Frame

• All Welded • Powder Coated • Heavy Gauge Bent One Piece Plate • Tip Ahead Shroud With Built in Belt Guard Designed to Fully Expose  All Components for Ease of Maintenance • 10 Gallon Poly Fuel Tank  (15+ HP Fuel Tank Optional) • Hose Reel Compatible • Stationary Units  Built with Skid Style Frame



Includes

• Liquid Filled Pressure Gauge • Adjustable Pressure Regulator • 48” Gun  And Wand Assembly with Quick Coupler System for Machines Under

 5000 PSI • 0°/15°/25°/40° Nozzles • 1 Soap Nozzle • Chemical Injection  System For Machines Up To 7.5 HP • 50 Feet Of High Pressure Hose



Options & Accessories

• Auto Stop/Start • Hose Reel • Wheel Kit - Add (-WK) • Remote Control • VFD • PLC • Pressure Transducer



Specs:

Manufacturer: Water Cannon

PSI: 3600

GPM: 8

BTU: 800000

Drive Type: Belt Drive

Cold or Hot Water: Hot Water

HP: 20

Volts-Phase: 208 - 3 Phase

Dimensions: 60"L x 31"W x 65"H

Manufacturer:	Water Cannon
SKU:	25M28-208
PSI:	3600
GPM:	8
