Pump - Hydraulic Drive - 21 GPM @ 4350 PSI - 1000 Rpm - Spline Shaft

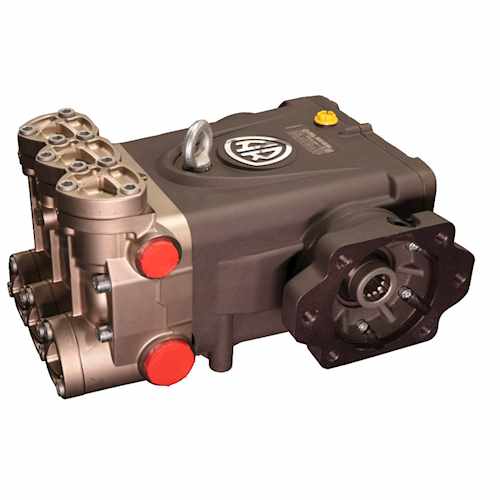

Annovi Reverberi AR RTD80-300 horizontal gas engine triplex plunger pump is rated up to 21 GPM at max 4350 PSI spins a 35mm solid shaft at 1000 RPM using a 1 ½ Inch inlet and 1 Inch discharge thread. N version with a gas engine flange. Image shown with Standard Keyway Shaft, Spline Shaft not Shown.

This Heavy Duty Annovi Reverberi hydraulic drive pressure washer / washdown pump comes with a 5 year manufacturer’s warranty. It provides a flow rate up to 21 GPM and up to a maximum pressure of 4350 PSI.



The pump can be mounted to most vehicles and connected to existing hydraulic systems, as the pump  hydraulic motor requirements are 18.5 gallons per minute and its pressure requirements range from 2175 to 3275 PSI depending on the model. Because this unit is hydraulic fluid driven, no electric power or gasoline is needed; a water supply is all that is required.



• Annovi Reverberi - AR North America RTD80.300 Triplex Plunger Pump

• 24mm Solid spline shaft – Hydraulic Drive

• Maximum pump speed: 1,000 RPM

• 21 GPM – 4350 PSI

• Bearings are premium SKF tapered roller bearings that provide extra load support, smoother and lower crankcase running temperatures and overall extended pump life

• Maximum fluid temperature: 140°F.

• Inlet ports 1 1/2 Inch female

• Discharge ports 1 Inch female

• Drive side: Standard right

• Forged brass head and valve covers

• Plungers are extra thick solid ceramic titanium impregnated for extended seal and pump life

Manufacturer:	Water Cannon
SKU:	HYD-RTD80.300-DD
PSI:	4350
GPM:	21
RPM:	1000
