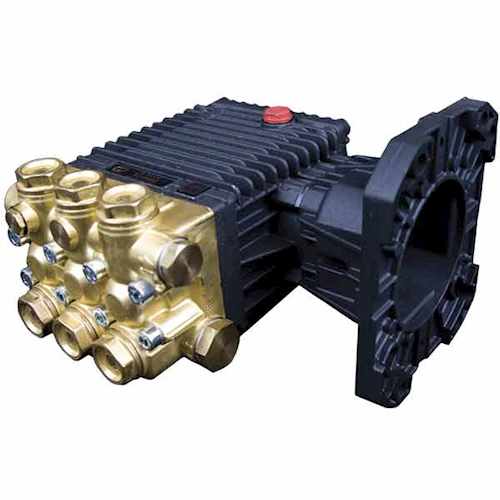

EZ4040G Bare - 4000psi 4gpm 3400RPM-General Pump

By : General Pumps

SKU : EZ4040G-BARE
  • Quick Specs
  • PSI: 4000
  • GPM: 4
Regular Price: $329.85
In Stock
Quantity:
Description
Specifications
Related Products
Customers Also Bought
Recently Viewed
Shipping
Description

General Pumps EZ Series 44 Triplex Plunger Pump EZ4040 with hollow shaft is flanged for direct coupling to gasoline engines (SAE J609B). The pump has a forged brass manifold with an exclusive lifetime warranty. The flange is for quick attachment to Gasoline engines up to 16 HP.

Features include:

  • Standard SAE J609 gasoline mounting flange for up to 16 hp engines includes bolt pack
  • Forged brass manifold with an exclusive lifetime warranty even against accidental freezing
  • Die-cast, anodized aluminum oil-bath crankcase includes oil, shipping plug and vented dipstick
  • Innovative one-piece plunger design to eliminate water entering crankcase
  • Premium roller bearing, Unitized stainless steel inlet and discharge valve

Specifications:

  • Maximum Volume: 4.0 GPM
  • Maximum Discharge Pressure: 4200 PSI
  • Maximum Pump Speed: 3400 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Inlet Vacuum: 3ft. Water (2.6 in Hg)
  • Plunger Bore: .512 in. / 13 mm
  • Plunger Stroke: .512 in. / 13 mm
  • Crankcase Oil Capacity: 14.0 oz.
  • Maximum Fluid Temperature: 165 F
  • Inlet Port Thread: 1/2-14 BSPP-F
  • Discharge Port Thread: 3/8-19 BSPP-F
  • Shaft Diameter: 1.0 in. / 25.4 mm
  • Weight: 20 lbs. Dimensions: 8.8″ x 9.7″ x 6.5″

Specifications

GTIN: 682491016984
Manufacturer: General Pumps
SKU: EZ4040G-BARE
PSI: 4000
GPM: 4
RPM: 3400
