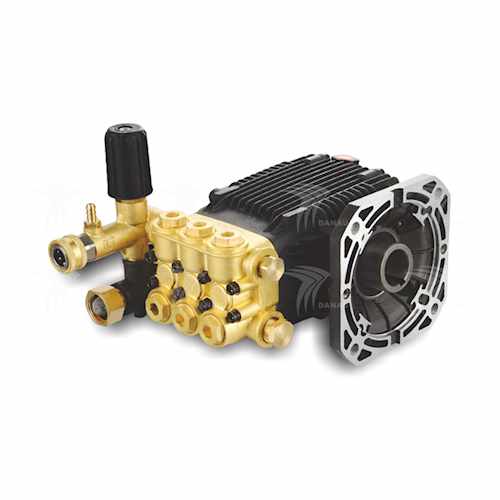

Easy Kleen Triplex Electric Pump 3.5GPM 3500PSI 1750Rpm 1-1/8



Plunger pumps are designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability.

Easy Kleen pumps are a combination of exceptional degree of technology and innovation. They deliver quality and reliability worthy of a leading brand on the market. The wide range of EK pumps includes many models which vary in terms of pressure, delivery, power, and technical characteristics, to satisfy widely different market demands.

This version of the Electric series boasts precision cast cooling fins that are anodized for maximum heat dissipation. The oversized needle bearing on the drive side and ball bearings on the non-drive side assure proper shaft alignment and maximum life. Valve cages of special design are impervious to water absorption and provide positive seating and extended life.

EK Pump, 3.5 GPM @ 3500 PSI, 1750 RPM, 5 HP, 1 1/8 Inch Hollow Shaft. Unloader Included - FOR ELECTRIC MOTOR

• Triplex plunger pump

• Direct drive with electric flange 184TC Horizontal shaft

• Maximum volume: 3.5 GPM

• Maximum discharge pressure: 3,800 PSI

• Maximum pump speed: 1750 RPM

• Shaft diameter: 1 1/8 Inch hollow 184TC

• Minimum horsepower requirements: 5 BHP

• Maximum fluid temperature: 160°F.

• Inlet ports (2): 1/2" BSP

• Discharge ports (2): 3/8" BSP

• Drive side: Standard right horizontal hollow shaft Standard 5 – 7.5 HP

• Forged brass head and valve covers

• Solid ceramic plungers

• Weight: 18 lb.

SPECIFICATIONS

SKU:      EZK3435H

PSI:        3500

GPM:    3.5



Installation Instructions:



Before installing motorized pump unit, check incoming voltage to be certain it does not exceed motor rating as this will result in motor damage. Instructions for electrical connection are on a decal on the motor housing. Qualified or trained personnel should install equipment. Equipment should be installed in accordance with the National Electrical Code, local codes and with NEMA MG1, Safety Standards for Construction and Guide for Selection, Installation and use of Electric Motors and Generators. Review your application flow and pressure requirements. Exceeding the rated pressure of the motorized unit may cause overheating of your motor, high amp draw and result in shortened motor life.



Manufacturer:	Easy Kleen
SKU:	EZK3435H
PSI:	3500
GPM:	3.5
